A Trombe wall is a classic example of passive solar design, using glazing and thermal mass to collect and release solar heat without mechanical heating.
So rather than list categories again, we want to walk through a few concrete, well-documented passive design strategies: two historic examples that have been used for centuries in very different climates, and one more recent example that’s closer to what we actually build at Light Hunter.
The Trombe Wall: A Textbook Example of Passive Solar Heating
The Trombe wall is probably the most commonly cited example of passive solar design in architecture courses, and it’s a genuinely simple mechanism. A thick, dark-colored masonry wall, often brick, stone, or concrete, sits a short distance behind a layer of glazing, facing the sun.
Sunlight passes through the glass and is absorbed by the dark wall surface, which slowly conducts that heat through its mass over several hours. By the time the heat reaches the interior face of the wall, it’s typically evening, so the stored warmth radiates into the living space exactly when it’s needed rather than during the hottest part of the day.
The concept was originally patented by Edward Morse in the 1880s, but it wasn’t popularized until French engineer Félix Trombe and architect Jacques Michel built the first modern version in Odeillo, France, in 1967. Later versions added vents at the top and bottom of the air gap to allow convective airflow as well as radiant heat, improving performance further without adding any mechanical equipment.
Variations on the basic idea, different glazing types, insulated air gaps, or operable vents, have appeared since, but the core mechanism has stayed the same for more than half a century: glass, dark thermal mass, and time.
The Wind Catcher: A Historic Example of Passive Cooling
If the Trombe wall is a passive heating example, the wind catcher, or badgir, is a well-documented passive cooling counterpart. Wind catchers are vertical towers that rise above a building’s roofline, capturing prevailing breezes and channeling them down into interior spaces, sometimes routing the air over an underground pool or water feature first so it arrives cooler through evaporation.
They’ve been used in hot, arid regions of the Middle East for centuries, with archaeological evidence suggesting versions of the technology in Iran dating back thousands of years, and they remain in active use across Iran and the Persian Gulf region today.
What makes wind catchers a particularly good passive design example is that they work even without strong wind: at night, the mud-brick or masonry material of the tower itself cools by radiation, and that stored coolness continues to draw warm air upward and out even when the breeze dies down.
It’s a strategy built entirely around the physical properties of materials and airflow, with no mechanical assistance required.
Bioclimatic Pergolas and Solar Pergolas: A More Recent Example
Both of those examples operate at the scale of an entire building, but passive design strategies scale down too, and this is where our own work fits in. A bioclimatic pergola is a modern, smaller-scale passive design example applied specifically to outdoor space.
Instead of a fixed roof, it uses adjustable louvers that open to let light and air through, or close to block sun and rain, giving a single outdoor structure the same kind of climate-responsive behavior that a Trombe wall or wind catcher provides for an entire house. It’s a passive strategy in the sense that it manages sun, air, and precipitation through form and positioning rather than mechanical heating or cooling.

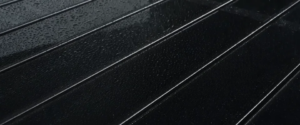

A solar pergola adds one further layer to that example by generating electricity from the same louvered roof. Our own Energy Pergola works this way: the louvers still open and close to manage light and airflow, exactly as a bioclimatic pergola would, while the roof surface itself generates power through perovskite photovoltaic technology, in some configurations feeding into home battery storage.
It’s a useful example of where passive design and active generation now overlap in a single structure, rather than existing as two separate systems layered on top of each other.
Applying These Examples to a Real Project
What connects a Trombe wall, a wind catcher, and a bioclimatic pergola is that none of them depend on outside energy input to do their core job. They work because of how they’re shaped, positioned, and built, which is really the definition of passive design in practice rather than in theory.
That said, not every strategy fits every site. A Trombe wall depends on consistent sun exposure through the day, a wind catcher depends on reliable prevailing winds or a strong day-night temperature swing, and a bioclimatic pergola depends on having outdoor space worth extending in the first place.
Looking at real examples like these is generally more useful than trying to apply passive design as a single formula, since the right strategy depends heavily on climate, site orientation, local building conventions, and how a space is actually used day to day.
Where Light Hunter Fits In
We focus specifically on the outdoor structure side of this picture. Light Hunter’s solar pergola is built to apply passive shading logic at the scale of a backyard or terrace, with the added benefit of on-site solar generation, without requiring the kind of full building redesign that a Trombe wall or wind catcher retrofit might involve.
If you’d like to talk through whether a passive, climate-responsive structure like this fits your own outdoor space, Contact Us and we can walk through what makes sense for your site and climate.
